Allstate 100 Series Door

The Allstate 100 Series Door features heavy duty 18 gauge steel with superior components in a prefabricated design for maximum stability and easy installation. We engineered the door to withstand wear, weather, and demanding conditions. Our door is ideal for commercial garages, industrial facilities, warehouses, or any setting requiring heavy-duty doors.

Shop Doors

Allstate 100 Series Door

The Door & Frame

  • Standard sizes: 32'' x 84 '', 36'' x 84'', 48x'' x 84''. Standard door thickness is 1.75''
  • The Door frame adds 2'' around the door and 3/4'' on the bottom.
  • 18 gauge A60 galvannealed steel construction with a fully insulated polyurethane core.
  • This door is designed for heavy duty use and built to withstand harsh industrial commercial conditions.

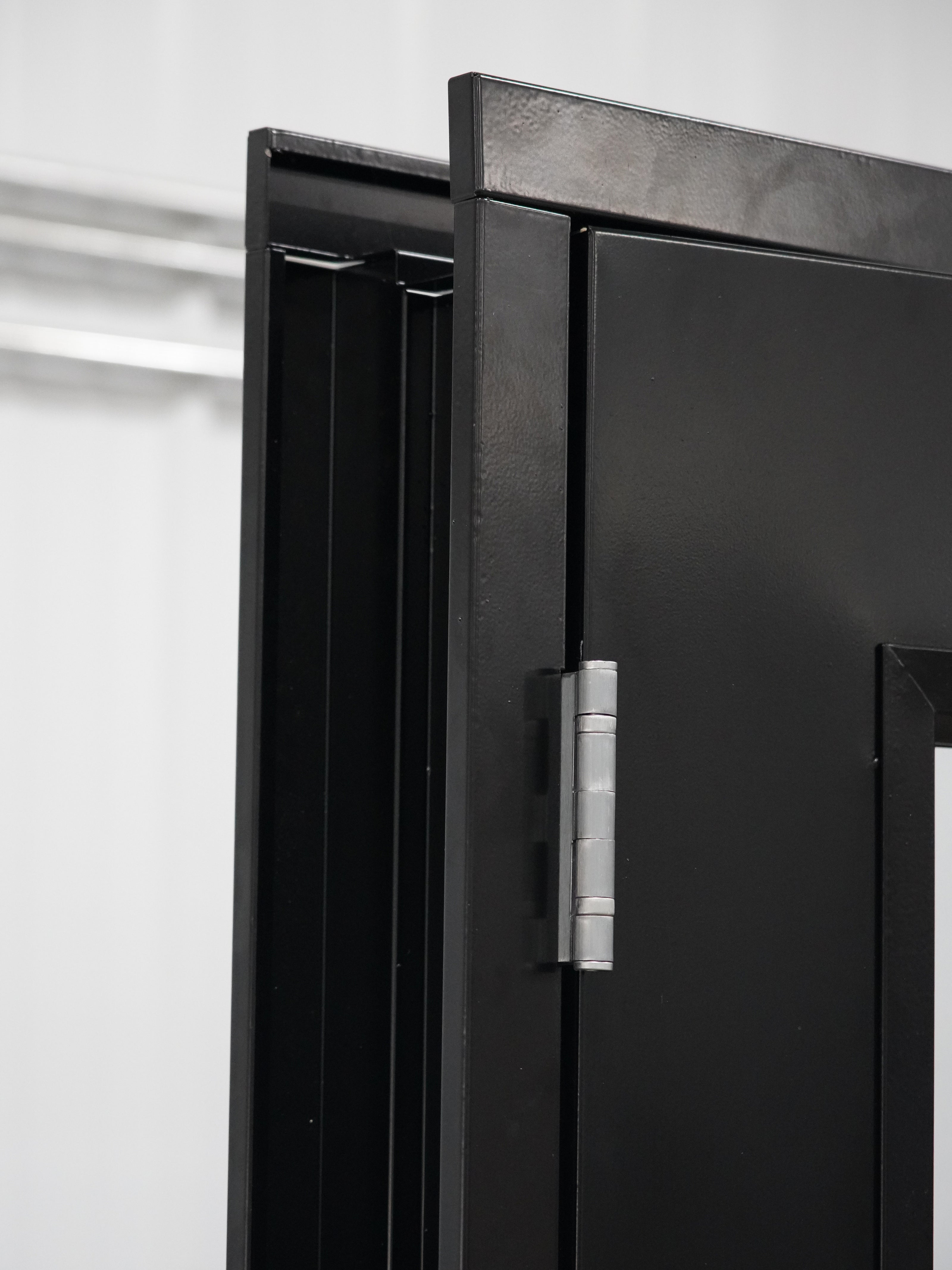

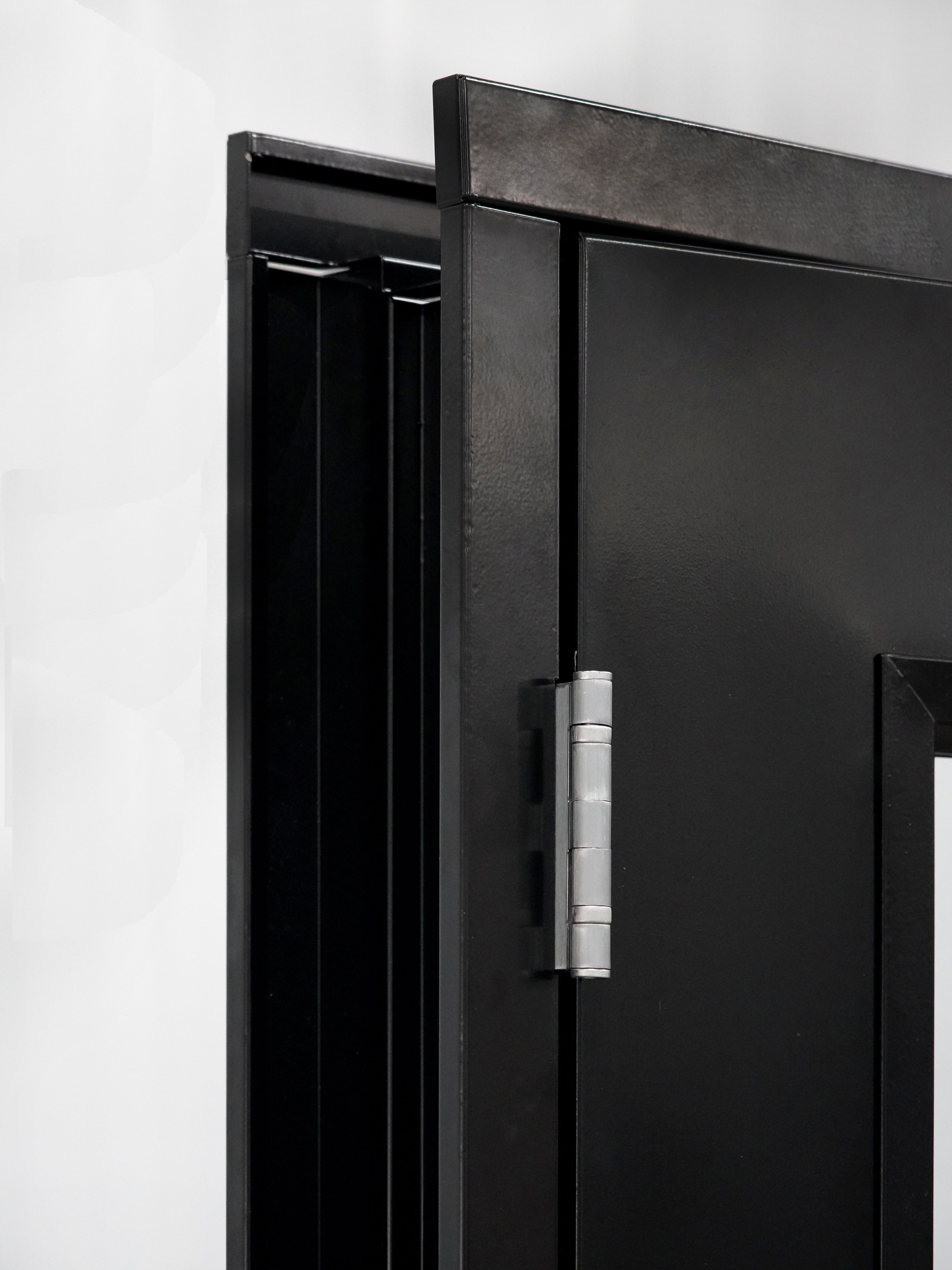

  • The frame matches the door with 18 gauge A60 galvannealed welded steel and full insulation.
  • Frame upgrade options: 16 gauge or 14 gauge steel for additional durability.

Finish & Durability

  • Our MAXX SHEILD 45 Paint System ensures long lasting production against harsh weather and heavy commercial use.
  • All accessories are stainless G60 steel and come with a 6 year warranty.

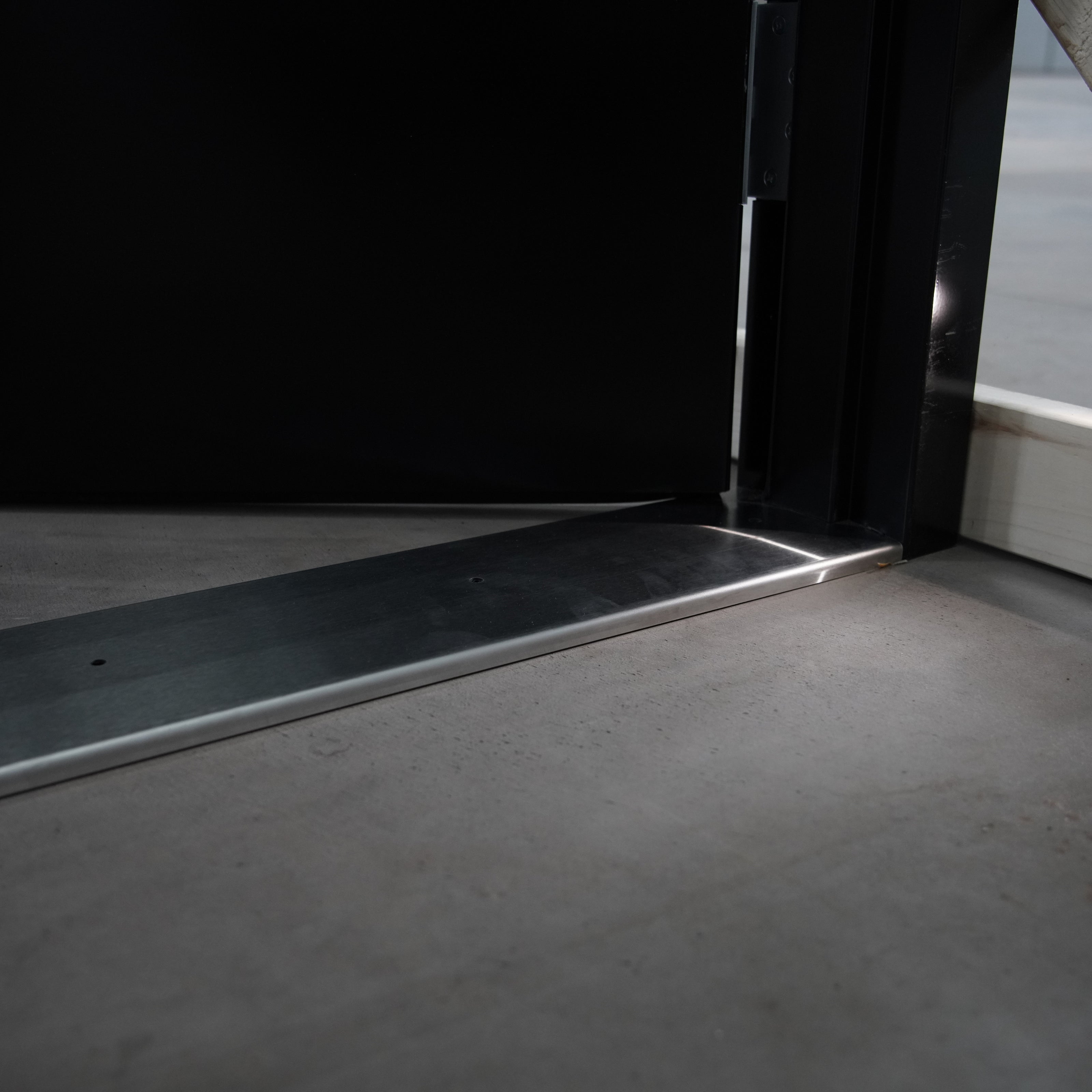

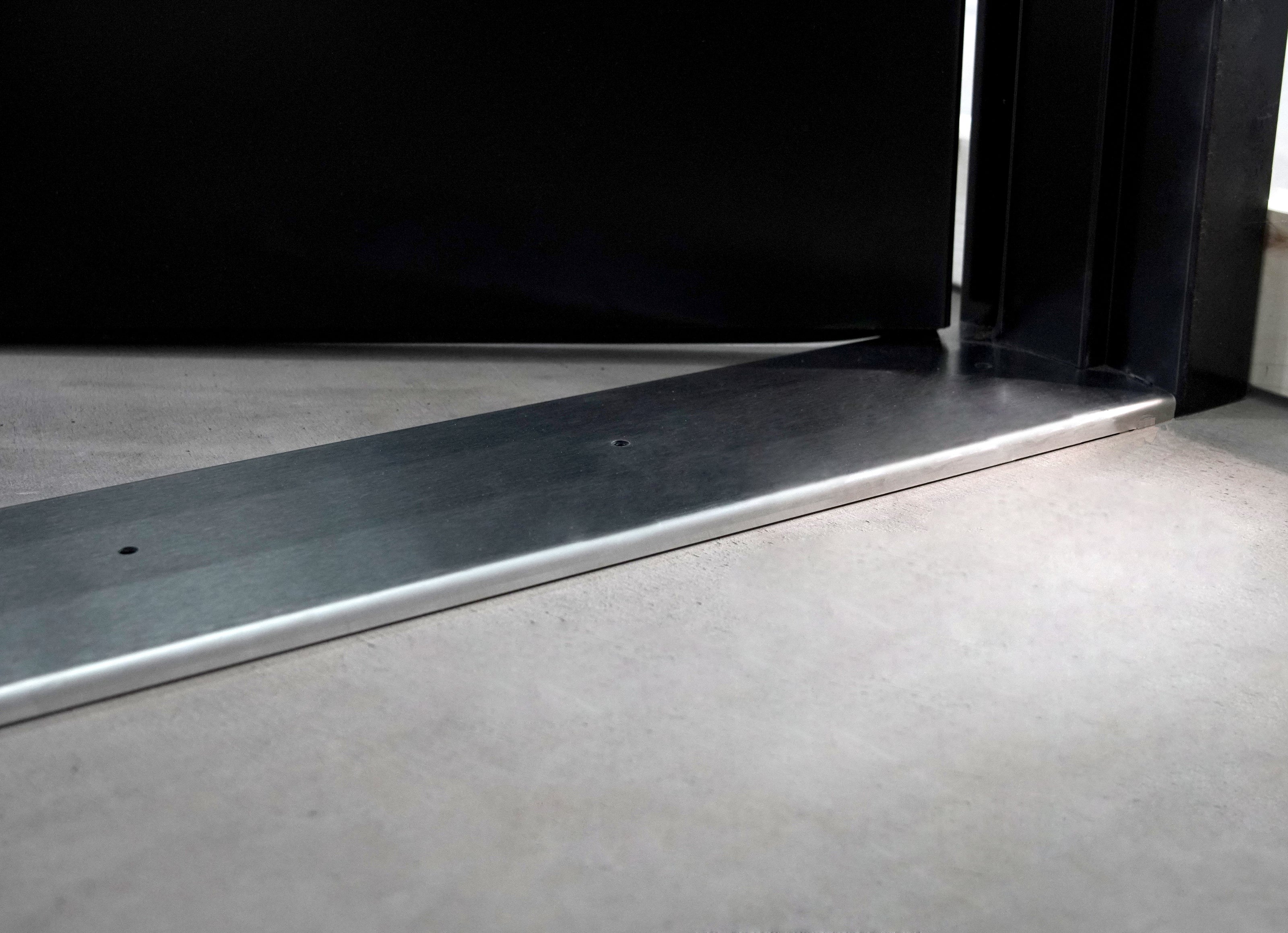

  • The Threshold is 5.75'' wide, made from 14 gauge type 304 stainless steel to resist wear and corrosion.
  • The door's skin and edges feature 18 gauge A60 galvannealed steel with a smooth finish, beveled edge, and interlocking mechanical seam.
  • The paint includes a 45 year warranty.

Hinges

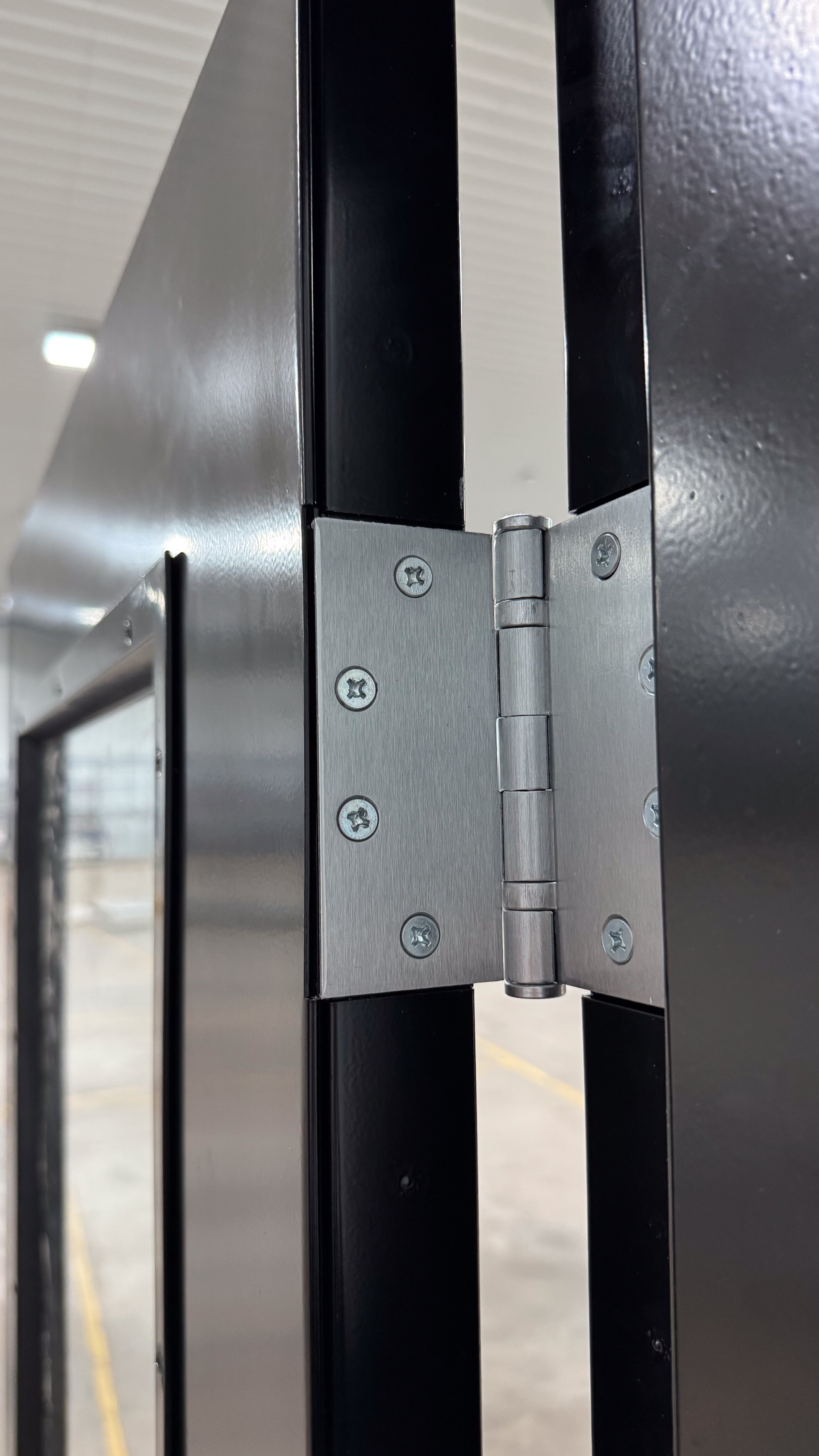

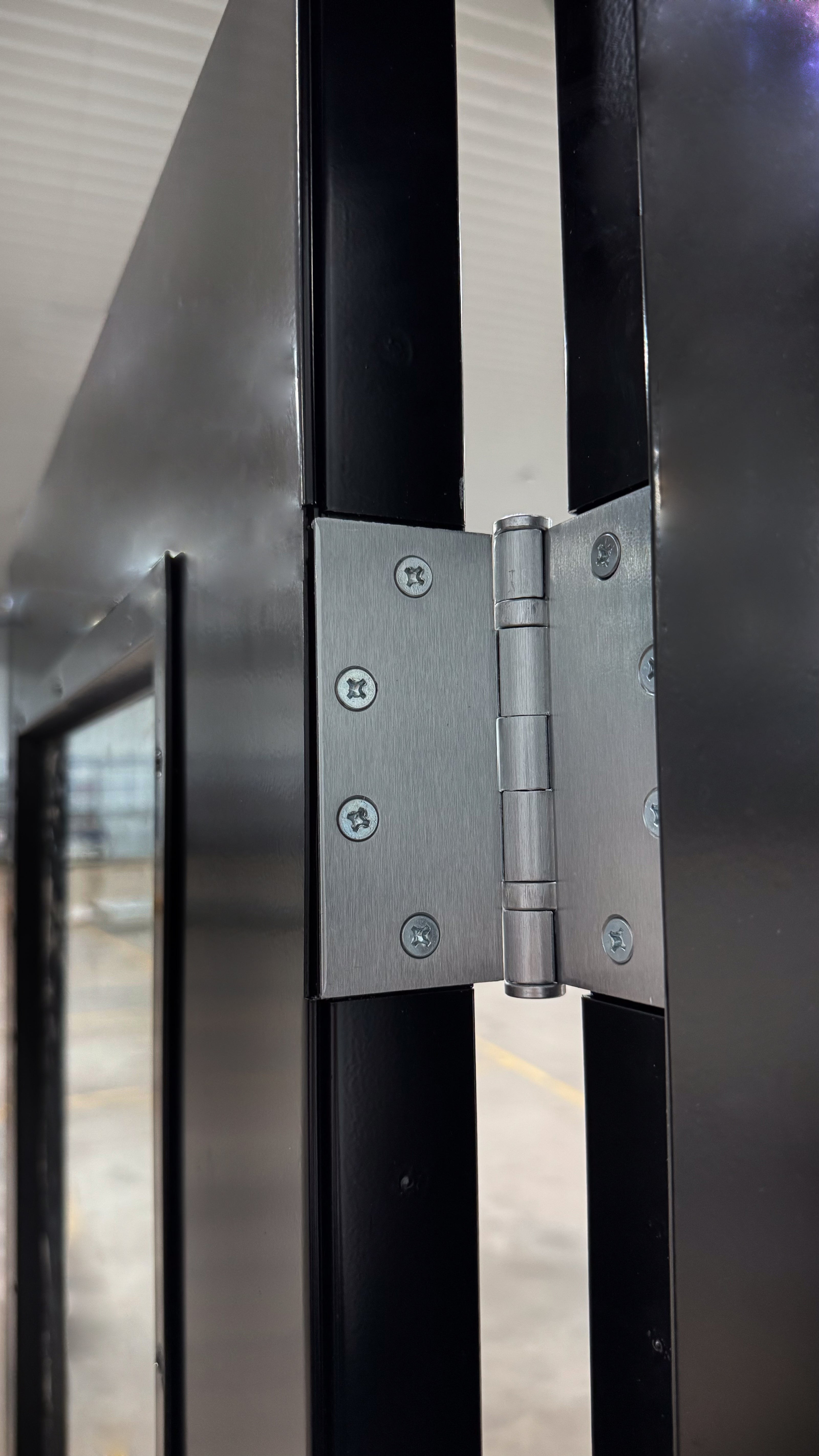

  • 3 Heavy duty 7 gauge 4.5'' stainless steel ball bearing hinges with non removable pins to keep your building secure.
  • 4 Foot wide doors come with 4 hinges for extra support

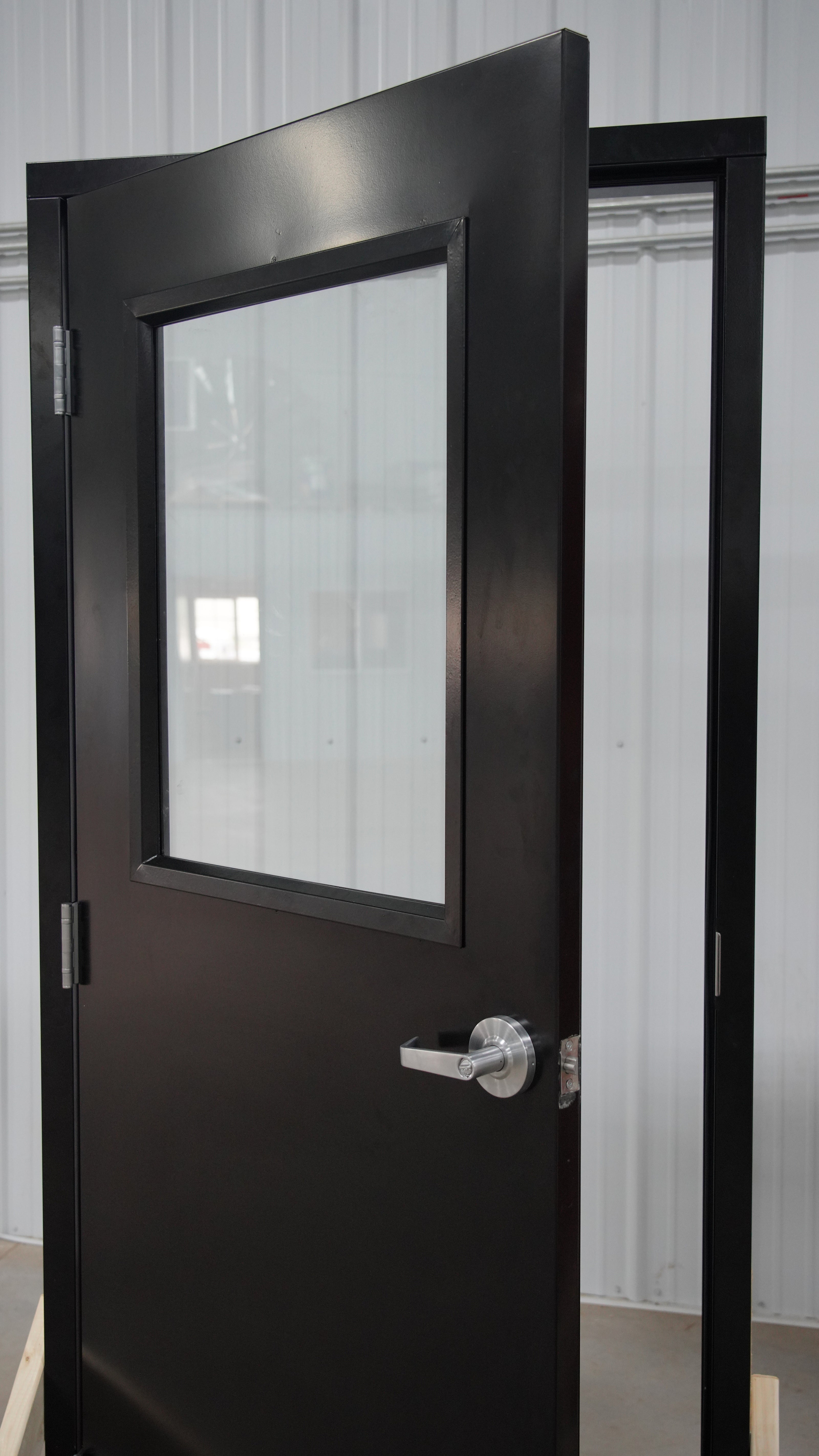

Tempered Windows

  • Sizes: 8'' x 30'' or 24'' x 30''
  • Constructed from tempered glass for durability and safety
  • Seamlessly integrated argon gas for thermal efficiency
  • Window kits available separately

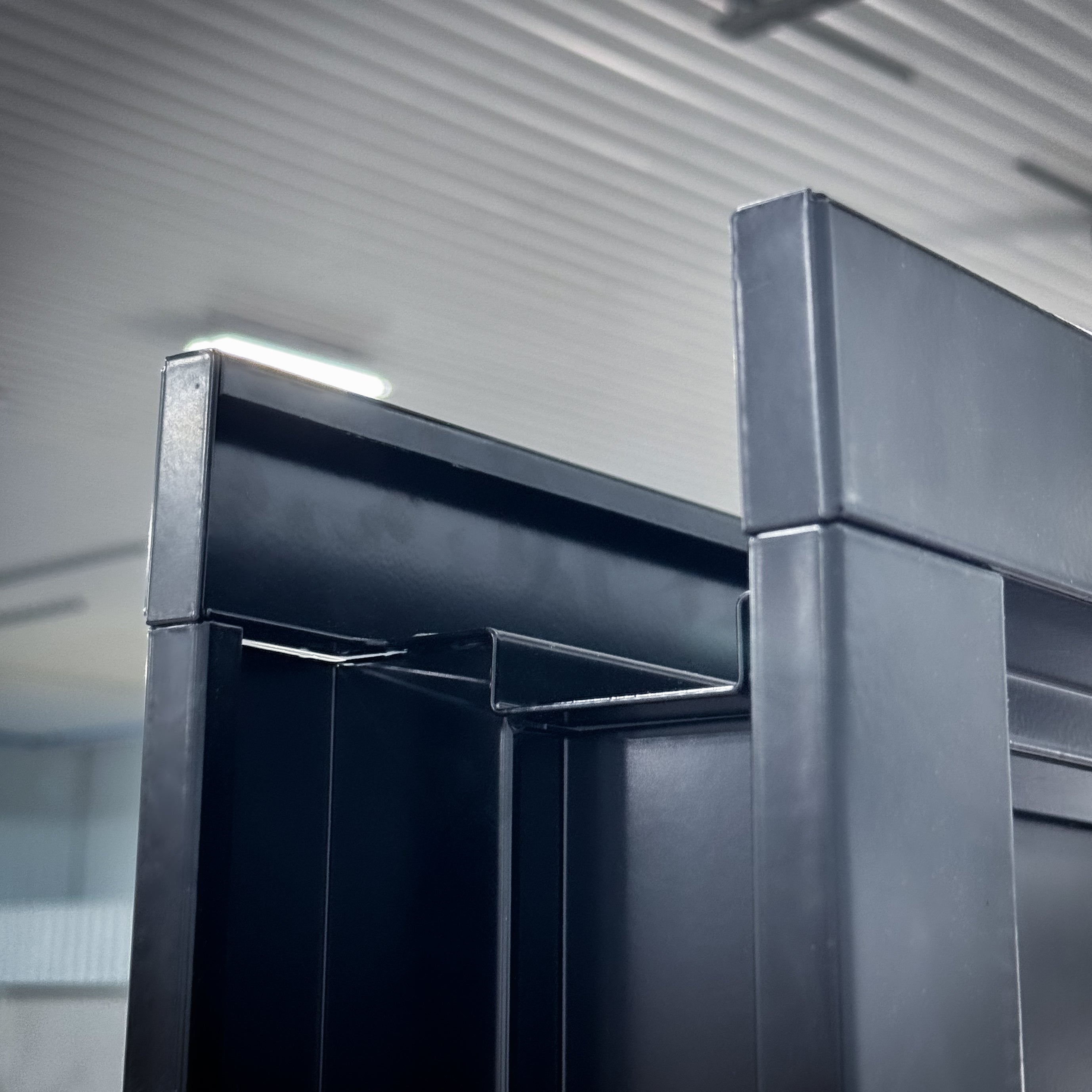

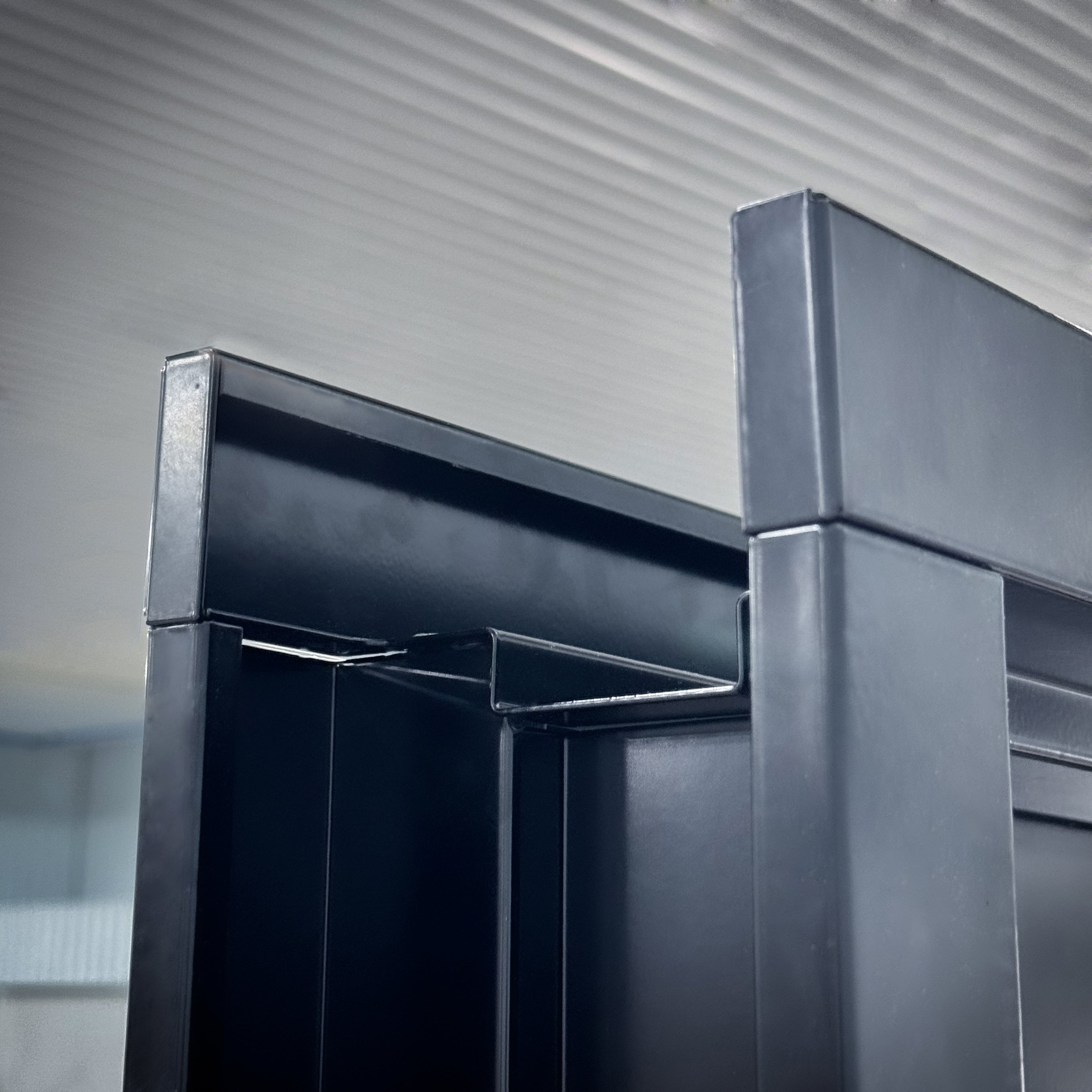

Subframe & Weather Protection

  • Made from 18 gauge galvalume steel with an offset design for self trimming flush mounting (jamb trim may be required).
  • Provides energy efficient insulation (R-14).
  • Comes with self adhesive bulb type weather stripping to seal out air and moisture.

Door Openers

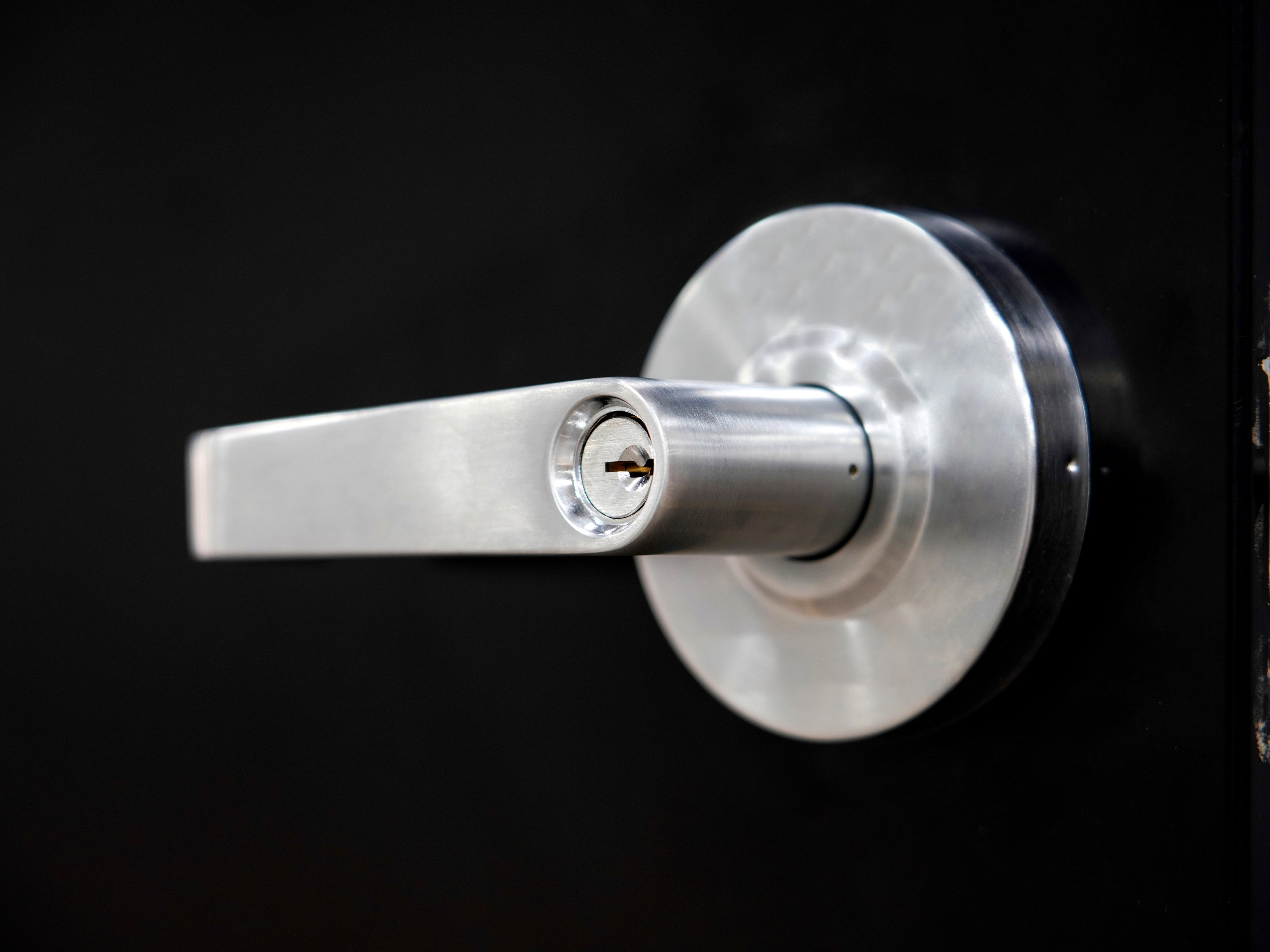

  • Passage lock - Designed for standard secure entry.
  • Optional latch guard protection available for enhanced security.
  • Panic Lock for emergency exit in commercial and high traffic applications.

Additional Info

  • All components meet commercial standards.
  • Doors are enclosed in a framed pallet for protection during shipping.
  • Our standard offering covers all requirements including ADA compliance, life safety compliance, AAMA, and ANSI requirements.

Warranty

  • The Allstate 100 Series Door includes a 6 year warranty on all accessories and parts.
  • We guarantee this door to be free of defects in the materials and craftsmanship.
